DPL’s Hygienic Valve Range
The Diamond Valve range has been tried, tested and chosen for over 120 years. All of our valves are fully maintainable and are proven to last many many years if maintained using our Spares Kits on a regular basis. With the Diamond Range you will find the perfect valve to suit your application, be it food, dairy, cosmetics, brewing or soft drinks.
Discover the Diamond valve range

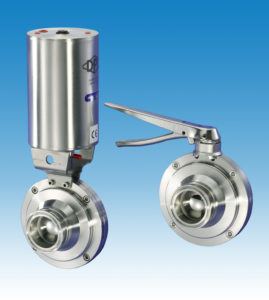

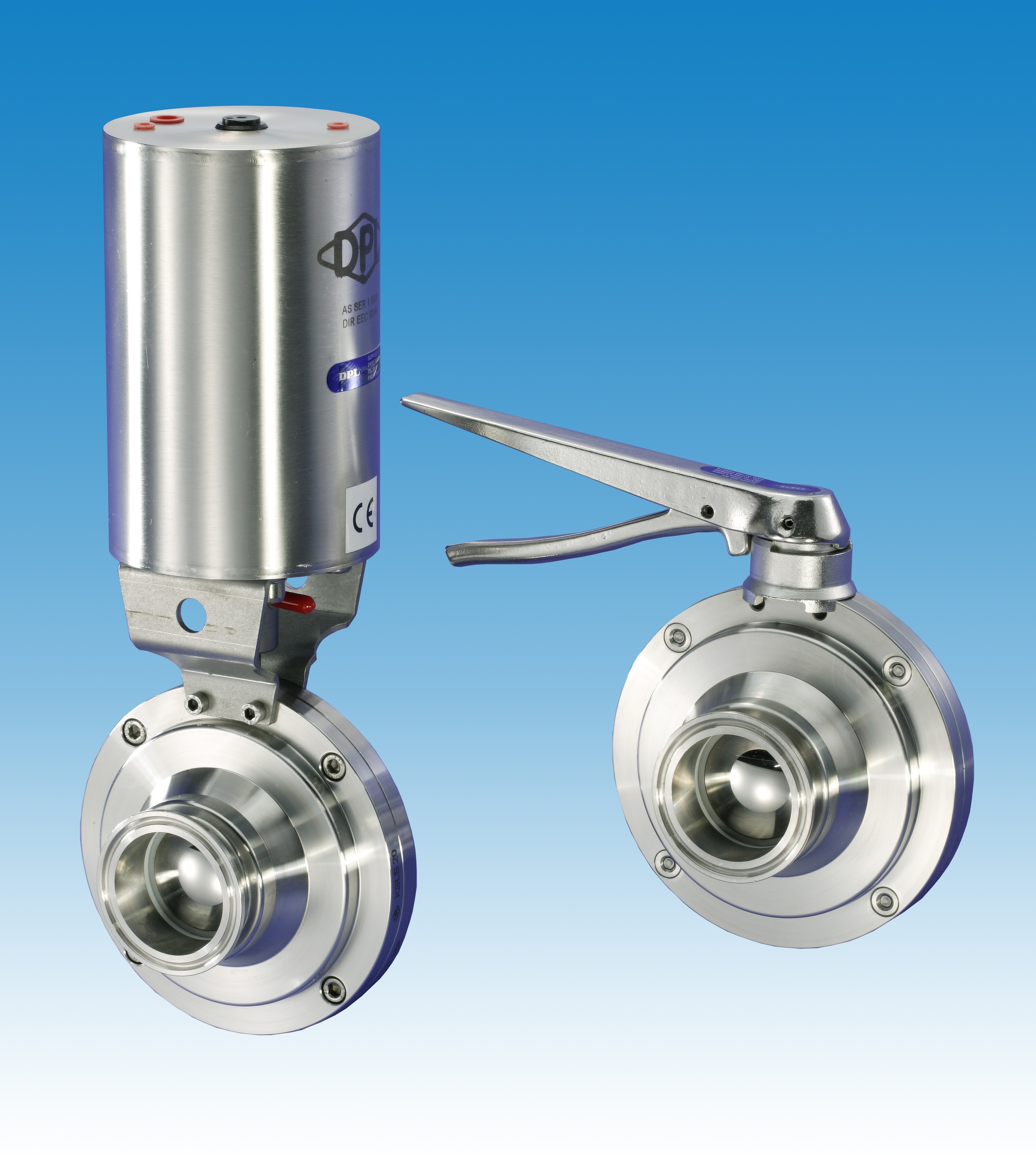

Diamond slimline ball valves
https://www.dpluk.co.uk/product/diamond-slimline-ball-valves/
The Diamond SLIMLINE Ball Valve is a high quality, compact, on/off unit offering you space-saving for those applications where space is a consideration.
Slimline ball valves can be supplied fitted and tested with a comprehensive range of pneumatic and electric actuators including all ancillary equipment such as solenoids, limit switches and positioners.

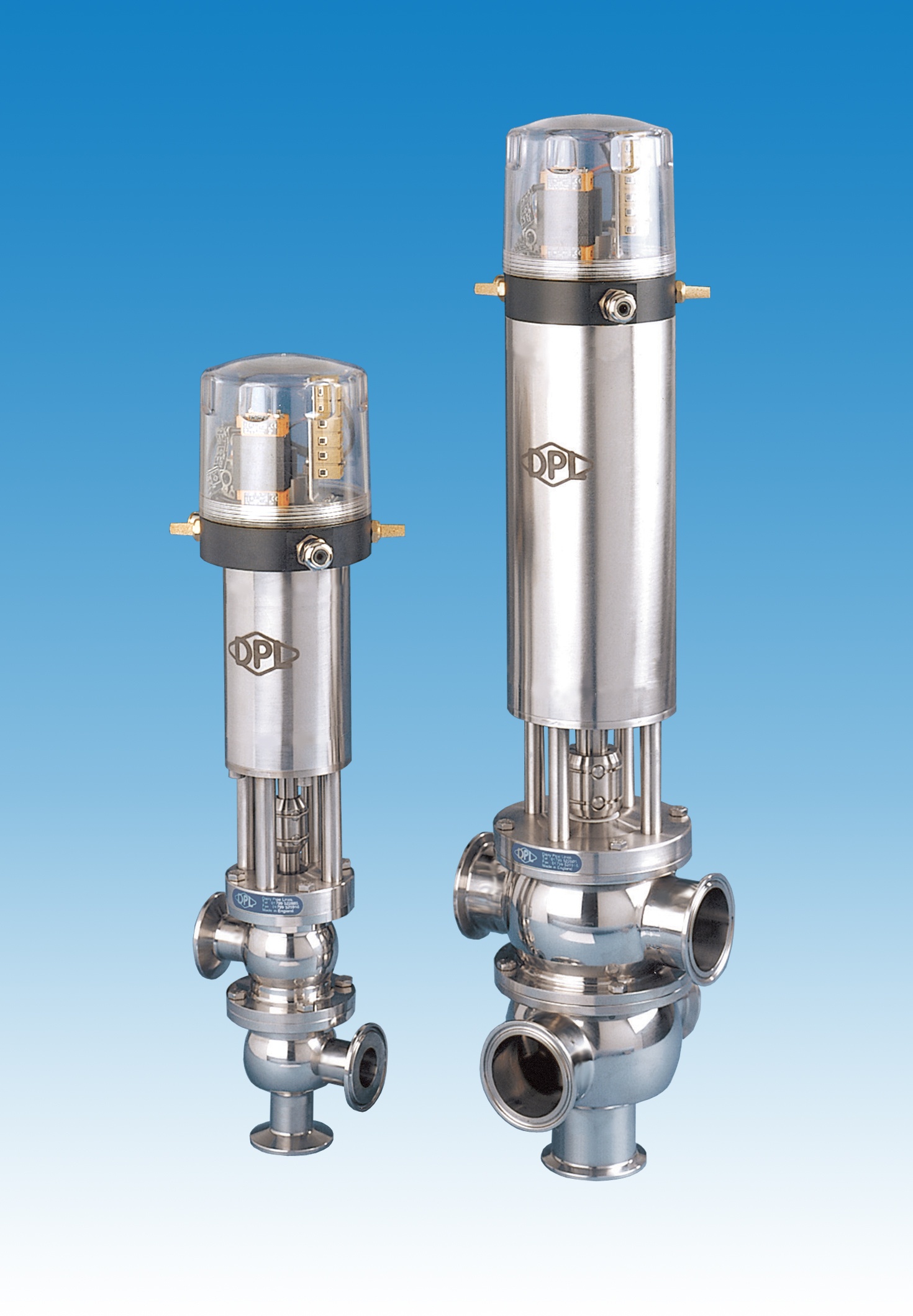

Diamond single-seat valves
https://www.dpluk.co.uk/product/diamond-single-seat-valves/
The Diamond shut off and divert range of Single Seat valves is advanced, modular and upgradable to suit your requirements.
As standard, the valves are fitted with the spring return actuator closing the valve spindle downwards with the spring, this is termed ‘normally closed’. The valves can be fitted with the actuator opening the valve spindle upwards with the spring, this is termed ‘normally open’. The actuator is easily field reversible to suit either requirement.
ATEX approved version available for use in potentially explosive atmospheres.

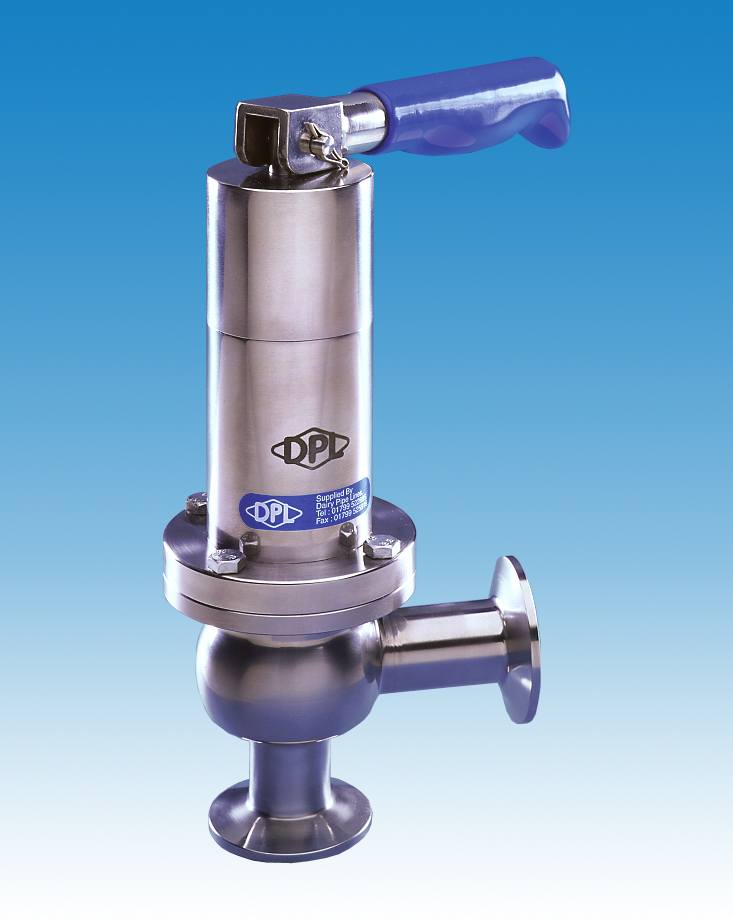

Diamond series 3-pressure relief valves Expand
https://www.dpluk.co.uk/product/diamond-series-3-pressure-relief-valves/
Designed to meet the changing needs of the process industry, the new Series 3 Pressure Relief valve uses elements of the DPL single and double seat valves to produce a full bore, self draining device, available in manual and actuated format, the Series 3 valves have a tamper-proof pressure setting mechanism which can be adjusted in-line.

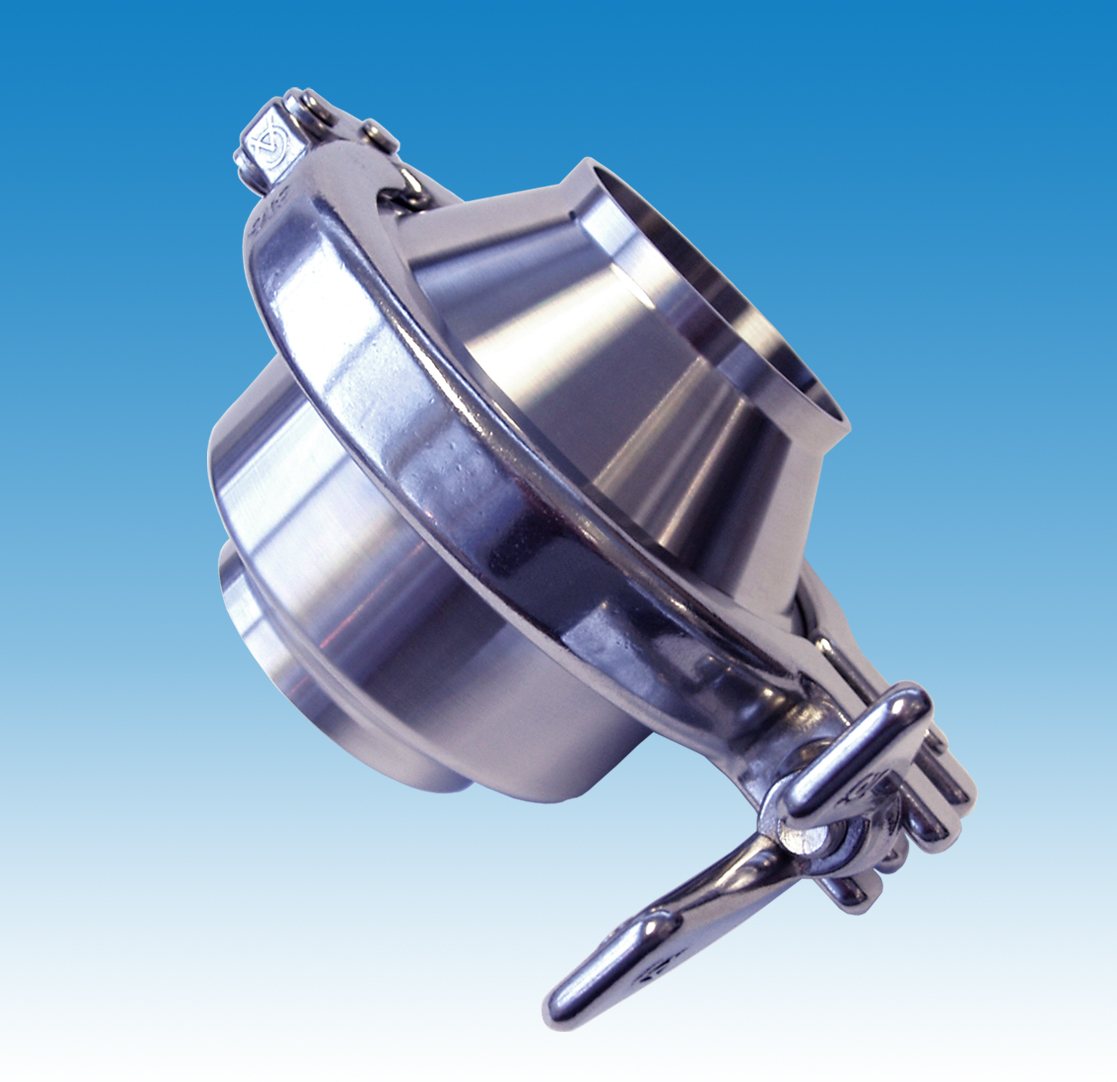

Diamond non-return valves
https://www.dpluk.co.uk/product/diamond-non-return-valves/
The DPL hygienic Diamond Non-Return Valve is designed to prevent back-flow of product in the pipework system. The valve is constructed to the highest specification, thus ensuring optimum levels of hygiene and cleanliness by nature of it’s design

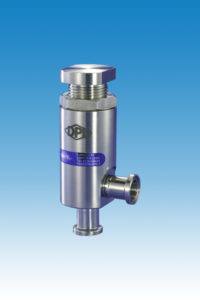

Diamond miniature relief valves
https://www.dpluk.co.uk/product/diamond-minature-relief-valves/
The 1/2” and 3/4” miniature PRV is available for applications not requiring a manual or actuated override. The Miniature PRV has a pressure range of 0.5 to 10 bar. Ideal for applications where space is at a premium, where cost is critical or where weight is important

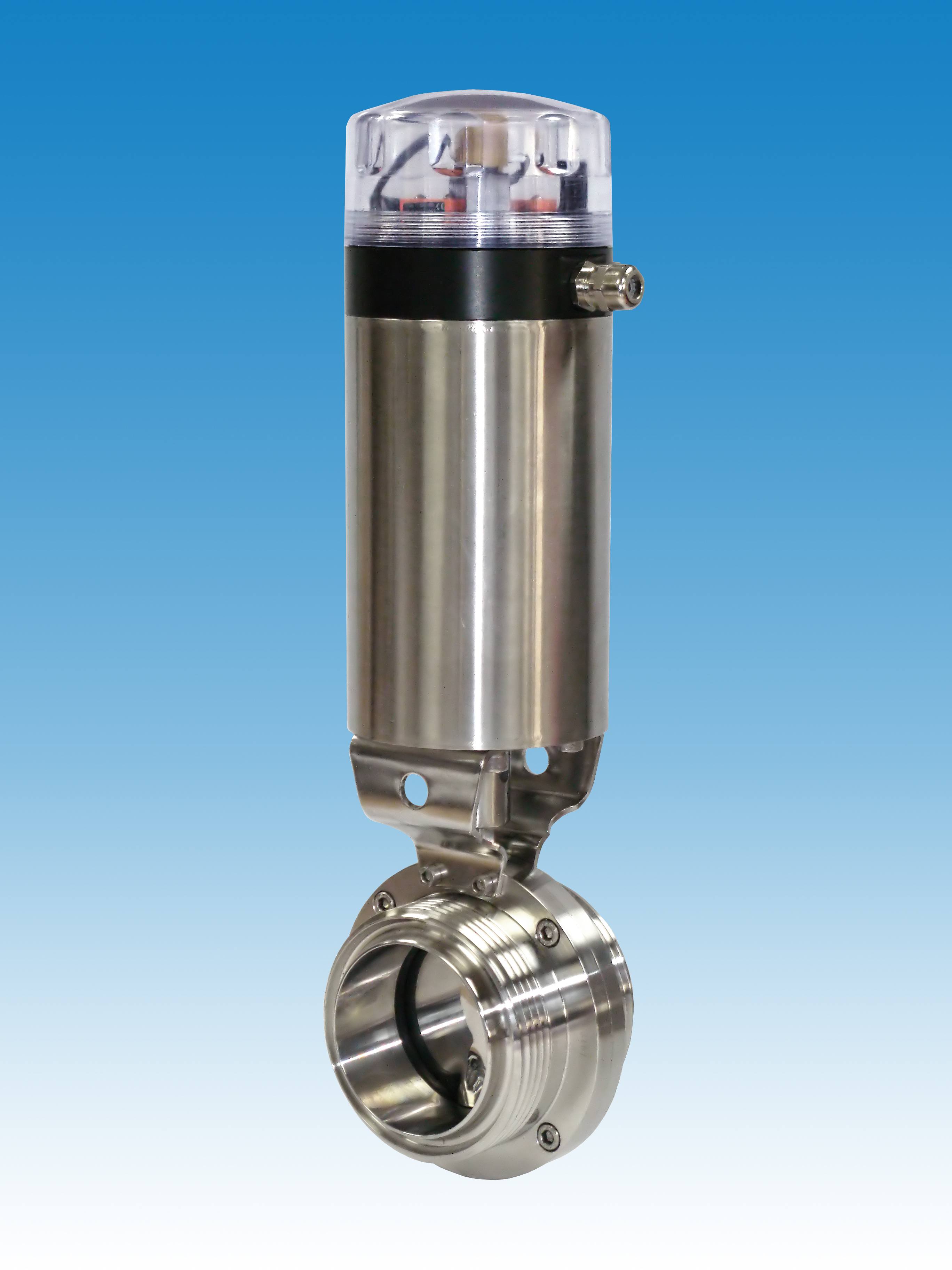

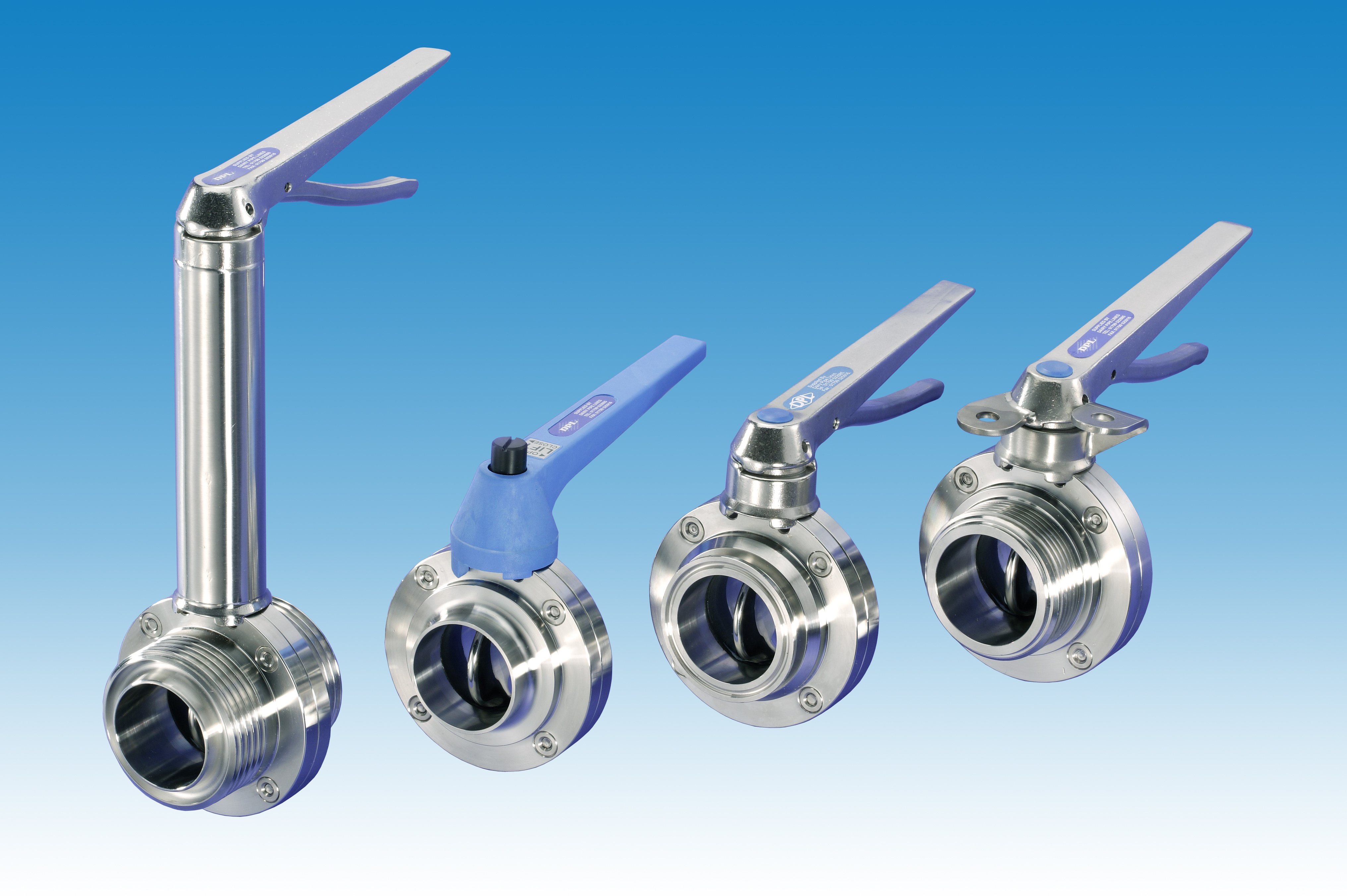

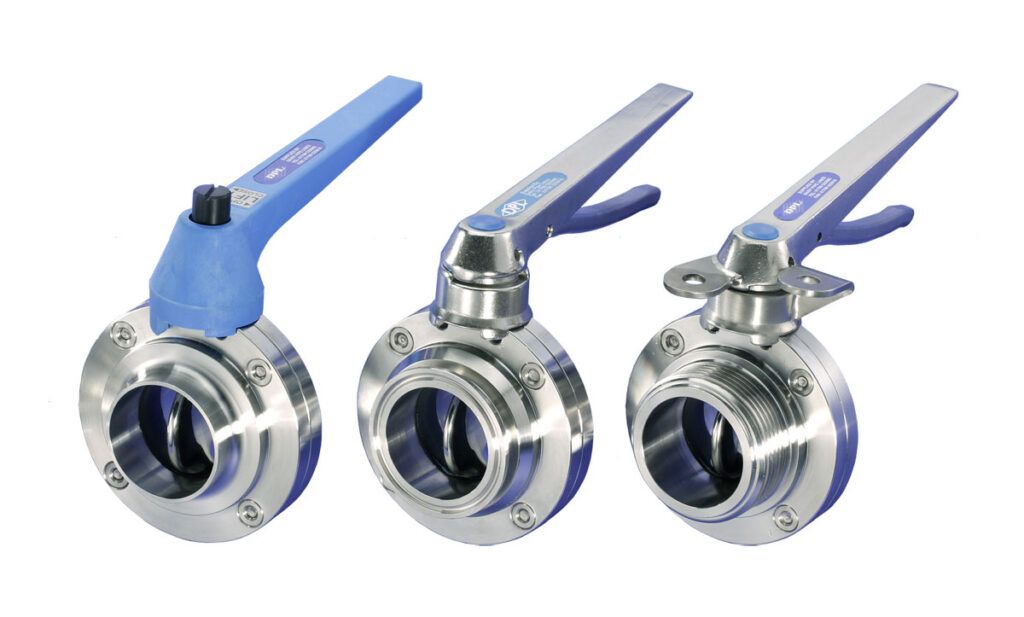

Diamond butterfly valves
https://www.dpluk.co.uk/product/diamond-butterfly-valves/
The Diamond Butterfly Valve is a hygienic, in-line, 1/4 turn or multi-position unit for manual and actuated service. This valve is the work-horse of the Diamond Valve range, and with proper maintenance has proven that it will keep working efficiently for decades.

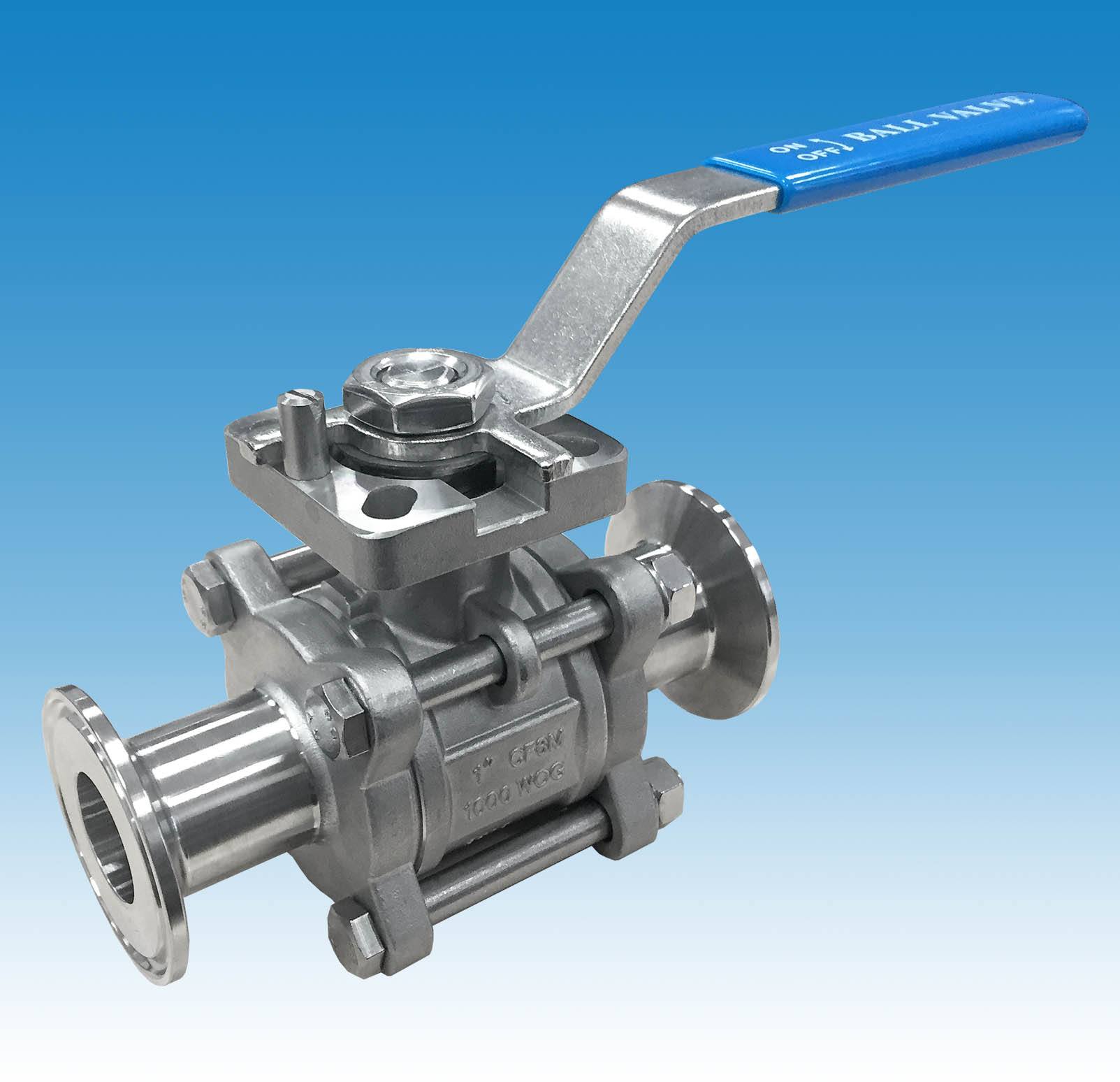

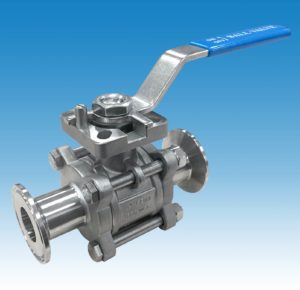

Diamond ball valves
https://www.dpluk.co.uk/product/diamond-ball-valves/
The Diamond Three Piece Direct Mount Cavity Filled Ball Valve is a stainless steel, full bore, on/off valve that can be supplied with any fitting or flange to suit your requirements
Diamond 3-way ball valves
https://www.dpluk.co.uk/product/diamond-3-way-ball-valves/
Constructed from 316 Stainless Steel and built to the highest specification, the valve ball is fully encapsulated in PTFE for optimal cleanliness. Plus, flow routing options of “T” port and “L” port are available from our stock to meet all your process application requirements









THE FINER DETAILS...
Trusted hygienic stainless steel valves, that are fully maintainable
From food processing to pharmaceuticals, Diamond valves provide the highest performance standards.
When you choose DPL for your Diamond valves, you get:
- Expert advice to help you choose the right Diamond valves for your application
- Guaranteed compatibility thanks to our wide range of end connections
- Clear traceability of parts and spares thanks to our dedicated valve coding
- Actuators and switch boxes for central computer control to meet your control requirements
Download DPL Catalogue
Our mission at DPL is simple but profound: to solve your challenges. We’re committed to being more than just a supplier; we’re your partners in progress. With our expertise, extensive product range, and dedication to your success, we’re ready to tackle your toughest process problems and help you achieve your goals.
Certification
Certification for DPL Products
From the vast array of published standards there are a number that are key to each industry. The accepted way of confirming that the standard has been complied with is for the manufacturer or service provider to issue a form of certificate with the goods or service.
There are many types of certificate but typically they can be categorised as Certificates of compliance, Test certificates, Inspection certificates or reports and Certificates of acquired skill or attainment.
DPL is an assessed company to the ISO 9001:2015 Quality Assurance standard and certifies that its products meet the relevant standards the product was designed for and also where modifications are made to suit a specific purpose. We provide a Certificate of Conformance with each order dispatched. Our seal and gasket components are food contact safe and we provide certification for these that states the relevant FDA schedule number for the material.
A Valve Test Certificate is available for all DPL supplied valves. This will supply information on the materials used, the seal material and seal standards, the method of test and the test pressures, and the internal surface finish. Component Material certificates for the product wetted surfaces of the valve are also available with this certificate.
EU safety law
A statement of compliance is normally a legal requirement evoked by a European Directive. DPL issue these with every valve and actuator in line with the requirements of the particular commodity type along with our recommended valve installation procedures.
Some of the legislation affecting DPL products includes the Pressure Equipment Directive (PED), designed for pressure bearing products safety and the Machinery Directive that requires the design of the machinery is safe to operate and presents no hazard in operation.
DPL produces valves that comply with the electrical bias ATEX directive, for safety of operation in potentially explosive atmospheres which also seeks to prevent ignition through static discharge on non electrical products.
There are many other specialist certificates that have not been covered above. If you require a particular approval certificate for the components we can supply for your installation please enquire at the time of order with your DPL Sales contact.
Quality
Stainless Fittings (SFL) and Dairy Pipe Lines (DPL) are manufacturers of a range of stainless steel fittings, valves and bespoke fabricated units for the bio-processing, pharmaceutical and food industries. The companies are regularly assessed to the ISO 9001:2015 Quality Management standard.
The products provided by the company meet the stringent statutory and regulatory requirements demanded by the marketplace. Inspections and product tests are carried out at regular stages of manufacture allowing comprehensive quality records to be maintained. These records can then be used for analysis as part of our commitment to ongoing process and product improvements. As part of this process, bi-monthly reviews are in place to ensure the quality system continues to support our business objectives.
With the processes of the Quality Management System defined and implemented, one major role of the management team is to adapt these processes to meet changing requirements in the industry and to enhance the business wherever this results in a benefit to our customers.
Our initial contact with our customers is normally through the Sales team. Here your precise requirements are assessed and stock availability discussed with you in order to meet your needs. Where you require us to make use of our fabrication facility, we take the time to understand your exact requirements even further.
After being sure that your sales contact has a clear understanding of your requirements, we conduct a Contract Review Meeting to ensure that the entire team responsible for manufacturing your order are all clear on what is needed.
We will contact you where we need further information or where we need specific points being clarified. All agreements are documented so you can be sure we have your requirements on board.
Material traceability is of prime importance to us, and therefore our internal bespoke systems and material identification allows us to trace material back to its origin.
SFL and DPL offer a wide range of certification options to include Certificates of Conformance, Original Material Certificates, EP or Passivation Certs, Weld maps, Qualifications and Procedures to name a few. Just discuss your requirements with us – our Mission is your Peace of Mind.
Click one of these links to view or download our EU Directive Statements for:
